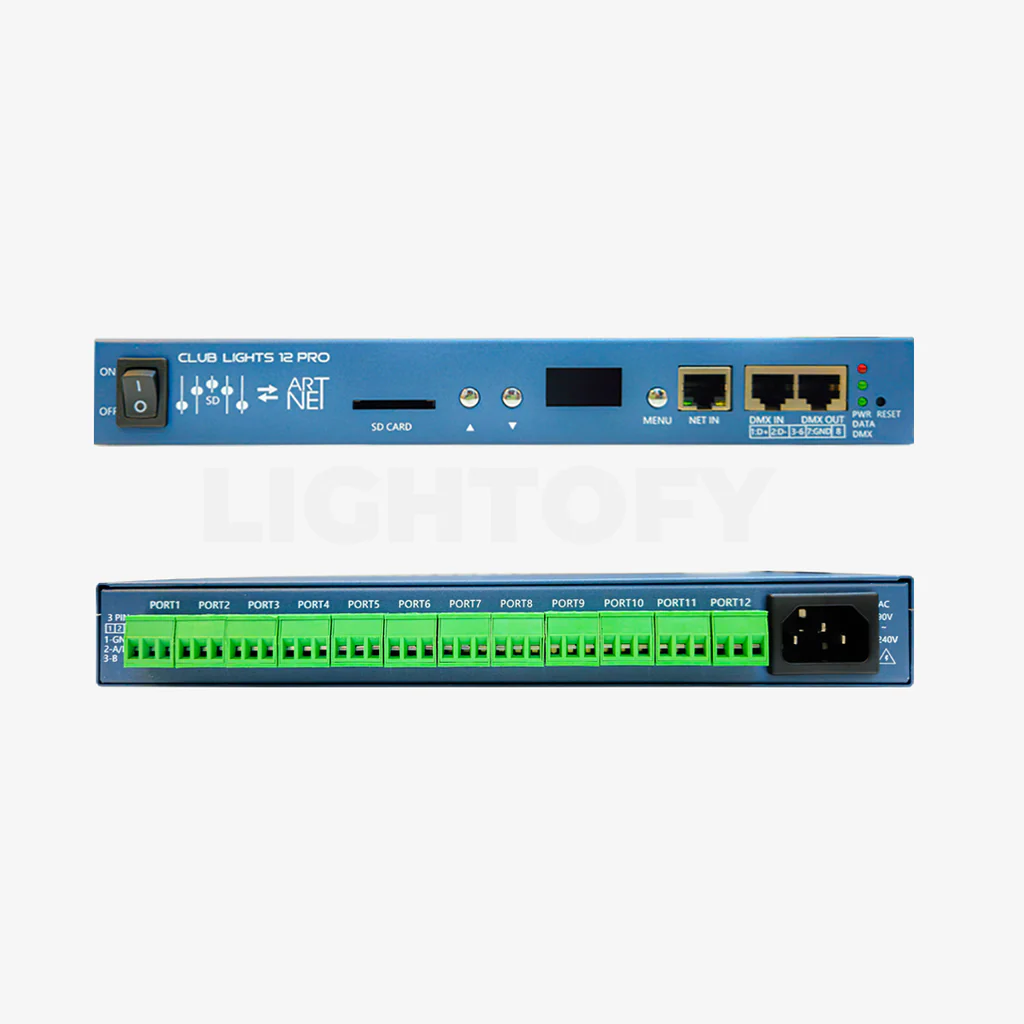

Features

1. 12 output ports control a maximum of 12288 pixels, and each port controls 1024 pixels.
2. Offline SD card, single model controller, with SD card to play the programs inside.
3. SD card supports FAT32 and FAT16 formats; the maximum capacity is 64G bytes, storing up to 64 DAT files.
4. Connect to the DMX console, replace files, and adjust speed brightness and responses quickly.
5. MADRIX effects record 6612-pro supports 12X1024 pixels with SD card and supports dmx512 console
6. FPGA, as the core processor, truly realizes high-load, high-speed, and high-gray control
7.  support drawing lighting diagram wireless ( ink book wifi inside the LED controller)
8. LED display, display parameters and address codes, and set address codes and parameters in combination with buttons
9. Supports various types of lighting driver ICs: DMX512, UCS series, TM series, LX series, GW series, TLS series, MY series, etc. LED industry driver ICs
10. The output interface can be compatible with differential signals and TLL signals at the same time
11. Supports RGBW four-color control and a variety of special controls; RGBW can choose energy-saving mode and brightening mode
12. Supports true high gray scale control, up to 65536 grayscale control can be achieved, and it supports gamma correction
13. Support external console control, support access to private room intelligent central control, and real-time control.
